Q91-Y1250W Heavy Duty Scrap Metal Shear

Q91-Y1250W Heavy Duty Scrap Metal Shear | 1800 mm Blade Hydraulic Gantry Shear

 Description

Q91-Y1250W heavy duty scrap metal shear for recycling yards and steel scrap processing. Features 6250 kN ×2 shearing force, 1800 mm blade, 7500 × 1800 × 900 mm chamber, 23 MPa hydraulic pressure, and 3–4 cuts per minute.

Q91-Y1250W Heavy Duty Scrap Metal Shear

Product Overview

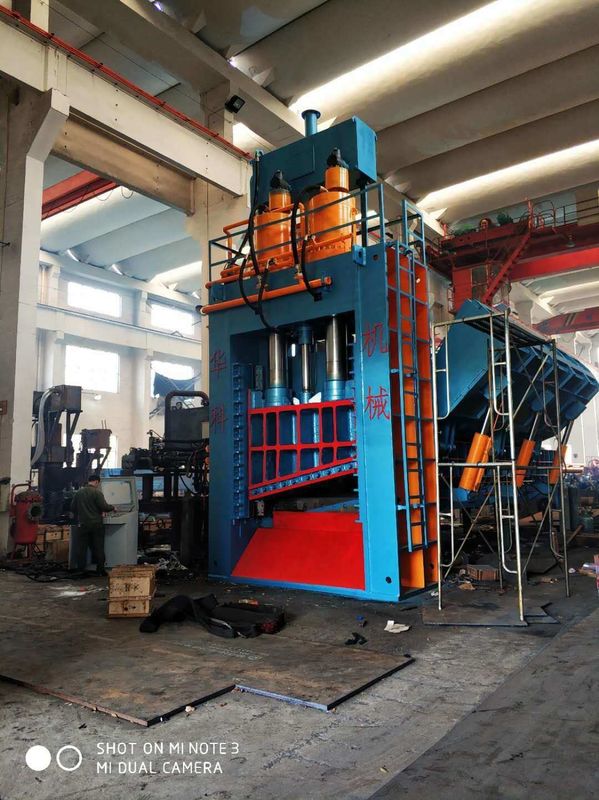

The Q91-Y1250W heavy duty scrap metal shear is a hydraulic gantry scrap metal shear designed for heavy ferrous scrap processing in recycling yards, metal recycling plants, and steel mill scrap handling operations. It is built for cutting structural steel, round bar, square bar, steel plate, and mixed industrial scrap into manageable sizes before transport, storage, or furnace charging. The machine uses an 1800 mm blade length, a 7500 × 1800 × 900 mm material box, and a hydraulic cylinder push system, making it suitable for continuous yard-based scrap processing.

Why This Machine Fits Heavy Scrap Processing

For buyers looking for a heavy duty hydraulic scrap metal shear, the most important question is whether the machine matches the actual scrap type, chamber loading needs, and cutting duty. The Q91-Y1250W is configured with:

• 6250 kN × 2 shearing force

• 1350 kN × 2 clamp force

• 1350 kN push force

• 23 MPa hydraulic working pressure

• 3–4 cuts per minute under empty load

These figures show that the machine is positioned for heavy scrap size reduction rather than light scrap cutting.

Key Technical Features

High Shearing Force for Heavy Scrap Steel

The machine uses YG540/340-950 shearing cylinders with 950 mm stroke and 6250 kN × 2 maximum thrust. This setup supports cutting of structural scrap steel, heavy plate, and large ferrous sections in fixed recycling yard applications.

1800 mm Blade Length

The shear knife length is 1800 mm, with a minimum shear opening of 620 mm. This is useful for processing wider scrap sections and irregular steel materials commonly found in demolition scrap and industrial offcuts.

Large Chamber for Continuous Feeding

The material box size is 7500 × 1800 × 900 mm, which provides long loading space for bulky scrap. In practice, chamber size affects feed convenience and working rhythm in a scrap recycling plant.

Industrial Hydraulic System

The machine operates at 23 MPa hydraulic system working pressure and uses five A4V-250 hydraulic pumps rated at 31.5 MPa and 250 ml/r displacement. This supports repeated cutting cycles in heavy-duty yard conditions.

Stable Processing Rhythm

The specification sheet lists 3–4 cuts per minute under empty load and a pushing speed of 300 mm/s, which is suitable for continuous scrap size reduction in recycling operations.

Main Technical Specifications

Suitable Materials

This hydraulic scrap metal shear machine is suitable for ferrous scrap within the listed cutting range, including:

• structural steel scrap

• round steel up to φ150 mm

• square steel up to 120 × 120 mm

• steel plate up to 80 × 600 mm

• demolition scrap

• workshop offcuts

• mixed industrial steel scrap

Typical Applications

Scrap Recycling Yards

Used for reducing oversized steel scrap before transport or resale.

Metal Recycling Plants

Suitable for pre-processing ferrous scrap into furnace-ready sizes.

Steel Mill Scrap Handling

Applicable to return scrap and structural steel preparation.

Industrial Scrap Processing

Used for fabricated steel offcuts, heavy plate scrap, and dismantled machine parts.

Recommended SEO Keywords

You can place these naturally across the page:

• heavy duty scrap metal shear

• hydraulic scrap metal shear

• hydraulic gantry scrap metal shear

• scrap metal shear machine

• scrap steel shearing machine

• gantry type scrap metal shear

• industrial scrap metal shear

• scrap metal processing equipment

• steel scrap size reduction machine

• recycling yard scrap shear

FAQ

What is the blade length of the Q91-Y1250W?

The blade length is 1800 mm, and the minimum shear opening is 620 mm.

What is the shearing force?

The machine uses dual shearing cylinders with 6250 kN × 2 maximum thrust.

What materials can this machine process?

It is suitable for round steel up to φ150 mm, square steel up to 120 × 120 mm, and steel plate up to 80 × 600 mm, within the listed shear range of Δb ≤ 450 MPa.

Is this machine suitable for recycling yards?

Yes. Its 7500 mm chamber length, cylinder push system, and gantry design make it suitable for fixed installation in recycling yards and scrap processing plants.

What is the cutting efficiency?

The specification lists 3–4 cuts per minute under empty load.

Short Description for Product Listing

Q91-Y1250W heavy duty hydraulic scrap metal shear with 1800 mm blade, 6250 kN ×2 shearing force, 7500 × 1800 × 900 mm chamber, and 23 MPa hydraulic system, designed for steel scrap size reduction in recycling yards and metal recycling plants.

Conclusion

The Q91-Y1250W heavy duty scrap metal shear is positioned as a fixed hydraulic gantry scrap metal shear for recycling yards and industrial ferrous scrap processing. With 6250 kN × 2 shearing force, 1800 mm blade length, 23 MPa hydraulic working pressure, and 3–4 cuts per minute under empty load, it is suitable for operations that need stable processing of structural steel, heavy plate scrap, and mixed ferrous materials.
